Aluwedo

Hyperbolic Panel

Hyperbolic Panel Products

Get Quote

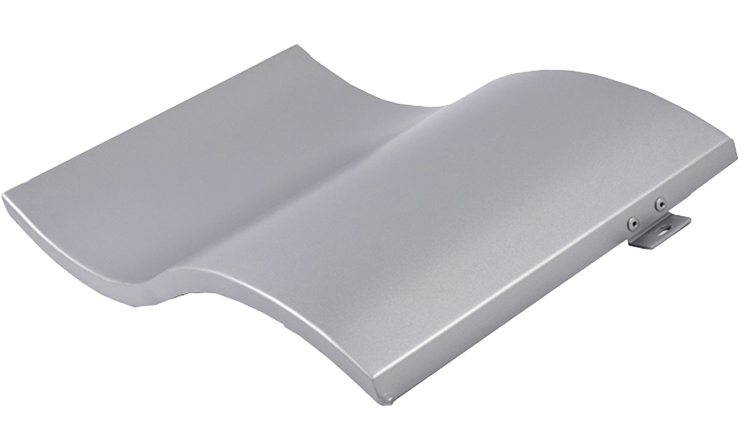

Hyperbolic panel is a type of decorative panel commonly used in architecture for exterior and interior design, It features a curved shape that creates a three-dimensional effect, adding a dynamic and unique aesthetic to the space.

Hyperbolic Panels Advantage

Get Quote
Hyperbolic panels offer a combination of unique aesthetics, impressive structural strength, and enhanced spatial perception. Their distinctive shapes add artistic allure to buildings while ensuring stability under different loads and conditions. Moreover, these panels create open, dynamic spaces that foster creativity, making them a compelling choice for both architectural design and functional requirements.

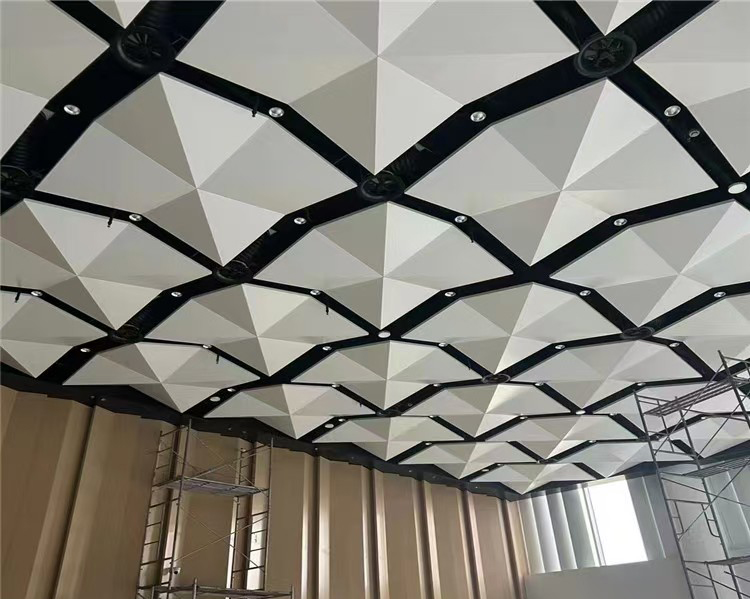

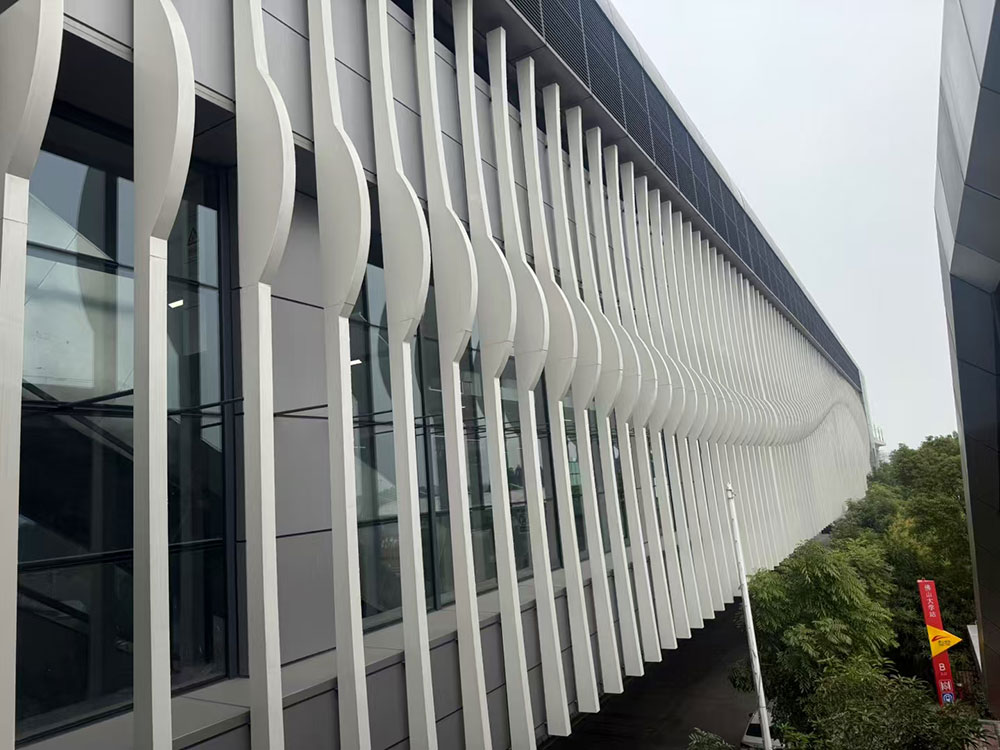

Application Cases

Widely used in Airports, Train stations, Schools, Hospitals, Hotels, Arts Center，Stadium, Exhibition centers, and Offices etc. And we are dedicated to providing exceptional customer service and support throughout the entire project lifecycle.As long as you give us the drawings, we will turn your ideas into products.

REASONS TO CHOOSE SIKO

Contact Us to get free samples

Color consistency

High quality PVDF/FEVE coating on a continuous industrial grade coil-coating line conforming to AAMA 2605 and ECCA guidelines.

Perfect flatness

The alloy and temper used in the manufacturing of SIKO is specifically chosen to ensure that the finished product has perfect flatness.

Non-combustible

A non-combustible panel which has passed a larger system test BS 8414-1 and is classified as A1-s0,d0 as per EN 13501-1 test standard.

Formability

SIKO is a solid and rigid aluminum panel, yet highly formable.

Range of colours

SIKO comes in a vast range of colors and surface finishes, giving you a large variety to choose from.

Technical support

You get support from team in recommendation and designing of appropriate fixing systems or any other necessary assistance.

Recyclability

SIKO is 100% recyclable material.

Warranty

SIKO comes with a 15-year warranty.

Reasons to choose SIKO

  • 1

    Color consistency

    High quality PVDF/FEVE coating on a continuous industrial grade coil-coating line conforming to AAMA 2605 and ECCA guidelines.

  • 2

    Non-combustible

    A non-combustible panel which has passed a largersystem test BS 8414-1 and is classified as A1-s0,d0 as per EN 13501-1 test standard.

  • 3

    Various colors

    Range of colours comes in a vast range of colors and surface finishes,giving you a large variety to choose from.

  • 4

    Perfect flatness

    The alloy and temper used in the manufacturing is specifically chosen to ensure that the finished product has perfect flatness.

  • 5

    Formability

    Solid and rigid aluminum panel,yethighly formable.

  • 6

    Technical support

    You get support from our team inrecommendation and designing of appropriatefixing systems or any other necessary assistance.

  • 7

    Warranty

    15-year warranty.

  • 8

    Recyclability

    100% recyclable material.

Technical Data

TECHNICAL PROPERTIES STANDARDS DATA
Alloy
EN573-3 3003
3003
Temper
EN 515
H24
Standard Thickness*
EN 485-4
3mm
Standard Width*
EN 485-4
1000mm 1250 mm 1500mm 1575mm 2000mm
Standard Length **
EN 485-4
As Required
Panel Weight
8.1 Kg/m²
Tensile Strength
EN 485-2
145-185Mpa
Modulus of Elasticity
EN 485-5
70,000 N/mm2
Yield Strength Rp0.2
EN 485-2
>=115Mpa
Elongation
EN 485-2 A
>=6%
Linear Expansion
EN 1999 1-1
2.4mm/m at 100°C temperature difference
Gloss
EN13523-2
25~40%
Surface
PVDF/FEVE
Fire Classification
EN 13501-1
A1-s0,d0
* Other thicknesses available on request. ** Custom widths available on request. *** Coating thicknesses varies for different surface finishes.

Standard Colrs
