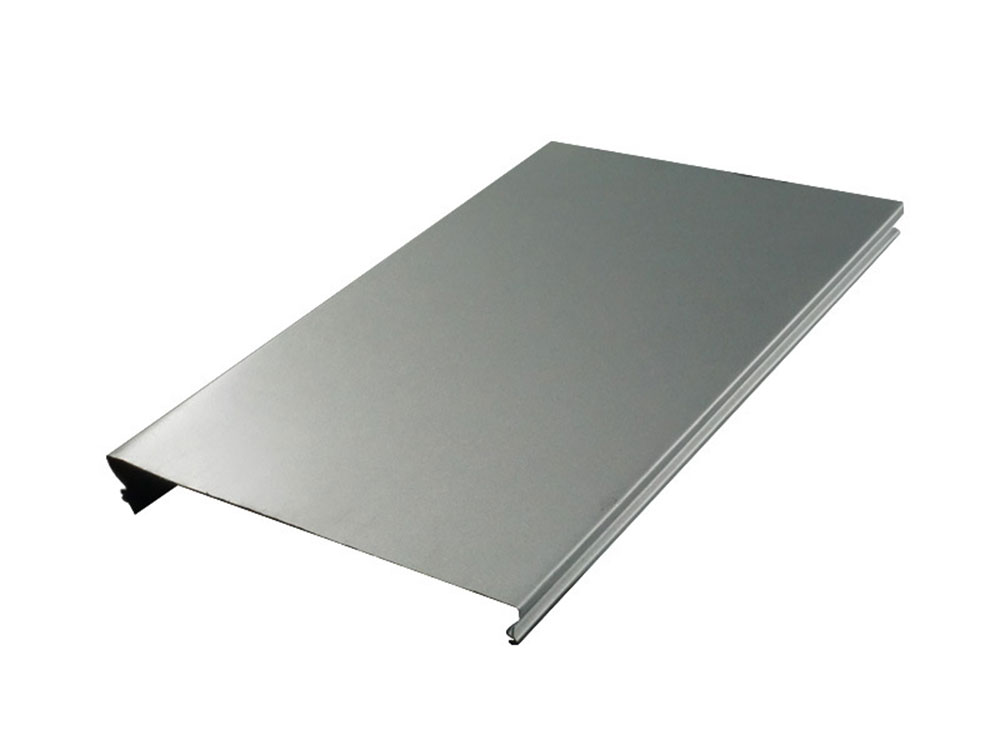

Metal Plank Ceiling
Metal Plank Ceiling Product
Durability, aesthetics, and multifunctionality, the Metal Plank Ceiling introduces a unique sense of style to interior spaces. The superior properties make it an excellent choice for a range of commercial and residential environments in good geature of resists dampness, corrosion.
Feature:
Material： AA grade aluminum alloy
Surface Finish: Powder coating/PVDF /Painted/pre-painted and etc.
Product Series
B-Plank Ceiling
| Height | 20-50 mm |
| Thickness | 0.7-1.0mm |
| Length | 100-6000 mm |
| Standard width | 50/100/150/200/300mm |
| Custom width | 100-300mm |
C-Plank Ceiling
| Height | 15 mm |
| Thickness | 0.45-0.9mm |
| Length | 100-6000 mm |
| Standard width | 100/150/200/300mm |
| Custom width | 75-600mm |
G-Plank Ceiling
| Height | 15 mm |
| Thickness | 0.55-0.8 mm |
| Length | 100-6000 mm |
| Standard width | 80/100/150/200/300mm |
| Custom width | 80-600mm |
H-Plank Ceiling
| Height | 30 mm |
| Thickness | 0.55-0.8 mm |
| Length | 100-6000 mm |
| Standard width | 150/200/300mm |
| Custom width | 150-600mm |
R-Plank Ceiling
| Height | 15 mm |
| Thickness | 0.7-1.0 mm |
| Length | 100-6000 mm |
| Standard width | 80/130/180mm |
| Custom width | 80-200mm |
S-Plank Ceiling
| Height | 15 mm |
| Thickness | 0.7-1.0 mm |
| Length | 100-6000 mm |
| Standard width | 80/130/180mm |
| Custom width | 80-200mm |
V-Plank Ceiling
Special design as required
Application Cases
