Polyurethane Sandwich Panel (PU Panel)

Polyurethane composite panel also called Sandwich Insulated Wall Panel, PU Foam Sandwich Wall Panel ,Metal Siding Exterior Decorative Wall Panel, Thermo Siding Insulation PU Foam Facade Decorative Panel etc.It uses high-quality color coated steel plate as the panel, and the core material uses polyurethane (rock wool, glass wool) raw material, which is formed by high-temperature foaming and curing, and double-track controlled molding. It has excellent thermal insulation performance.

Get Quote
1738898191337
1738898193458

Product description

it can form a variety of artistic decoration functions such as mahogany grain, cultural stone, marble, and mosaic; metal carved board composite polyurethane heat preservation and heat insulation layer, Effectively deal with the question of the single function of traditional decoration materials. The exterior wall decoration and heat insulation are carried out simultaneously; the house decorated with metal carved panels, due to its outstanding heat insulation effect, in summer, the indoor temperature is 3-5 degrees lower than that of general construction. It only takes about 5-8 years to recover the cost of data with the savings in air conditioning and refrigeration construction.

Name Polyurethane Sandwich Panel
Function Waterproof, fast installation, eco-friendly, thermal insulation, sound insulation, durable, 3D pattern
Surface Treatment PE /PU/HDP Coated＞30um

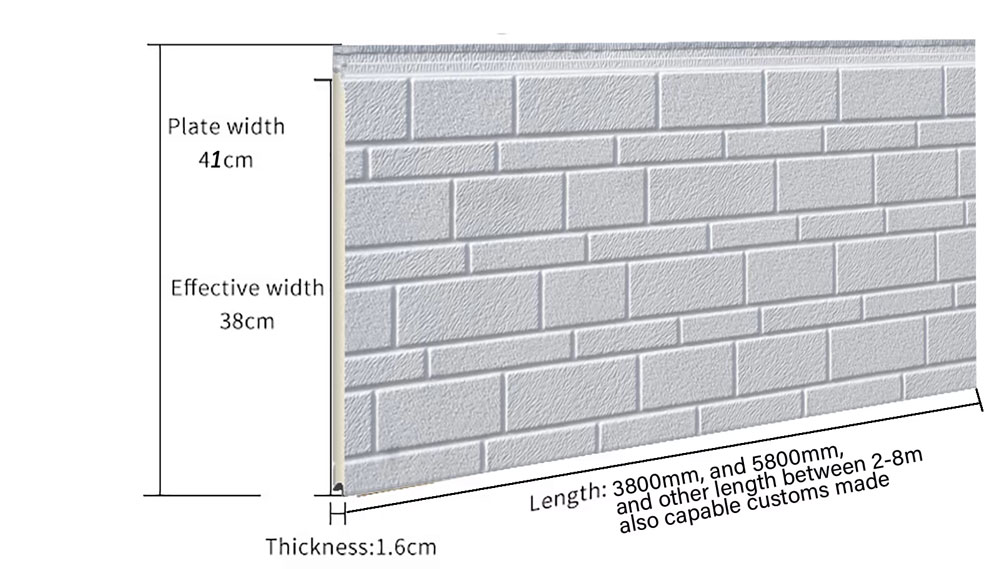

Standard Size Length: 3800mm/5800mm*Width: 383mm* Thickness: 14-25mm
Usage Interior and exterior walls and ceiling decoration insulation

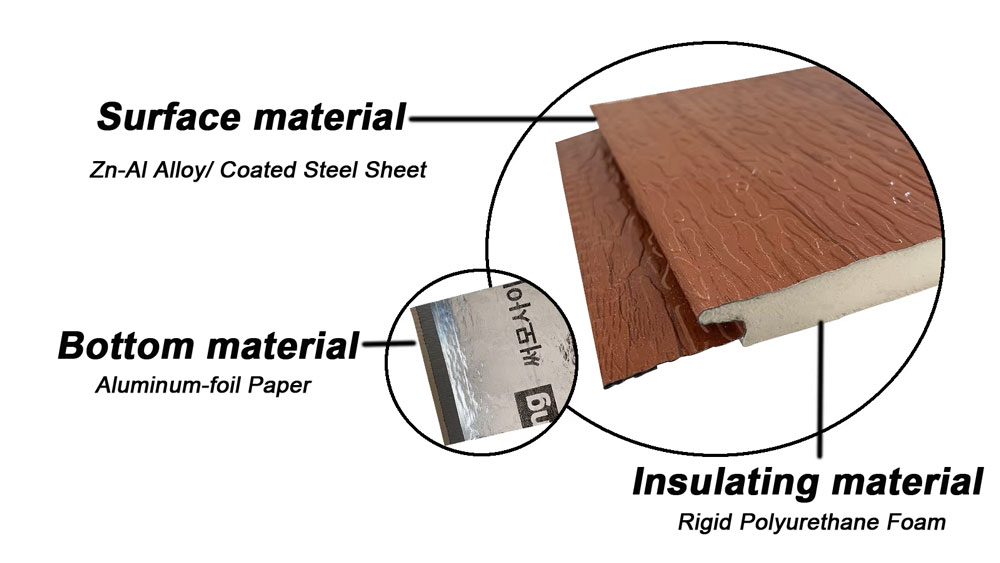

Surface Material Galvanized Steel /Aluminum Sheet
Core Material Polyurethane/foam/rock wool sandwich
Bottom Material Aluminum foil insulation layer
Metal thickness 0.21-0.25mm
Product weight 3.7kg/㎡
Package 10 pieces/carton (or customization)
Package Size 5900mm*420mm*165mm
3900mm*420mm*165mm
Container Capacity 20GP:1200㎡=12912 sq.ft(panel length:5800mm)
40GP:2800㎡=30128 sq.ft(panel length:3800mm)
40HQ:3000㎡=32280 sq.ft(panel length:3800mm)
The rest of the space is reserved for accessories.
OEM Logo,size,carton
Color RAL Color or Customized
 Thickness  14-25mm
Width 383mm

Color and pattern introduction

More than 100 of patterns surface,the Metal sidings are not only suitable for the thermal insulation decoration of the exterior walls of new brick-concrete structures, frame structures, steel structures, and light-weight houses, but also for the energy-saving renovation of existing buildings, as well as interior and exterior decoration.

Advantages

  • 1

    Significant energy-savings thermal conductivity coefficient of 0.024W/(c.K), 16mmthickness , metal board thickness 0.27-0.33mm

  • 2

    Recovery reaches 99.9%, service life is more than 45 years

  • 3

    Anti-seismic and Anti-cracking lightweight ,good shock resistance, strong integrity after anchoring, makes it possible to eliminate the earthquake damage to buildings.

  • 4

    Flame retardant and fire resistant

  • 5

    Waterproof, Damp-proof and Anti-leaking

  • 6

    Sound insulation and Noise reduction The Core material Hard PU foam is independent and consists of a closed bubble structure

  • 7

    Easy and quick installation

  • 8

    Strong Decorative effects and Eco-friendly

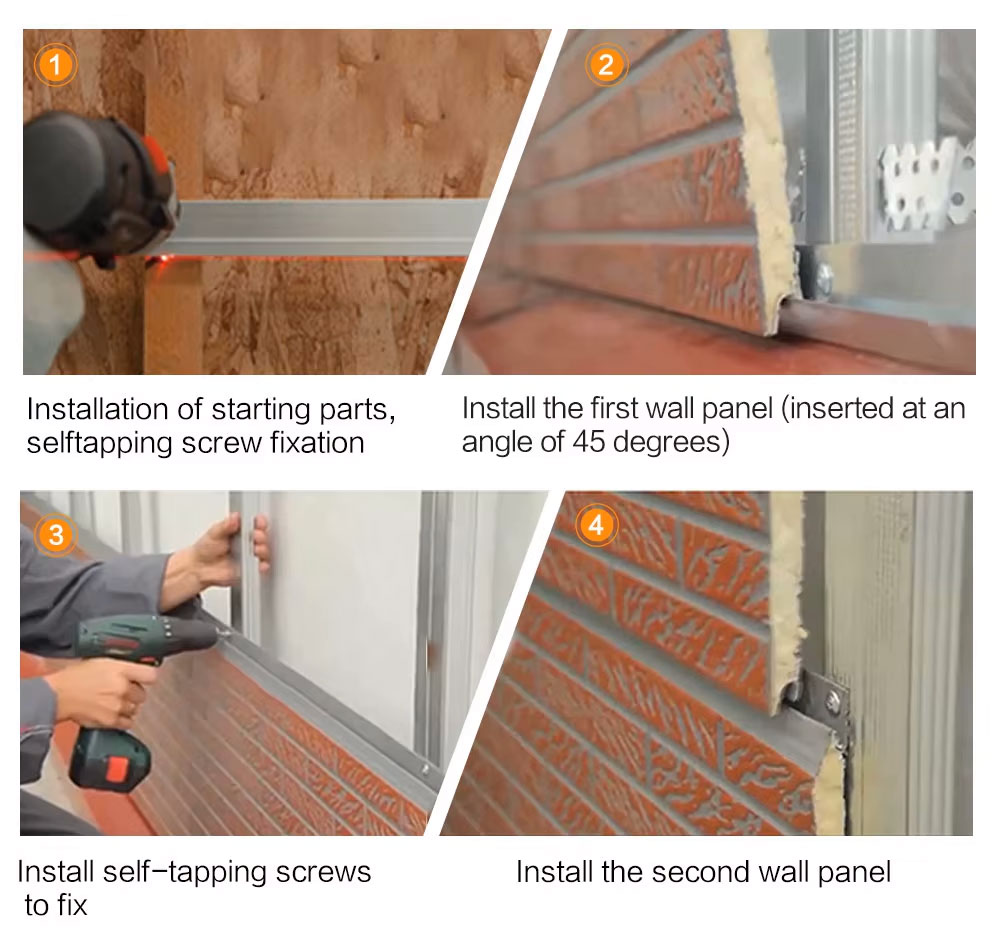

Installation process

Tools/Materials: Electric drill, expansion screw, self-tapping screw, metal carved plate

01

First place the metal carved board on the wall, power on the hand electric drill, and then use the electric drill to punch holes on the wall at the link of the metal carved board.

02

Then install expansion screws to the holes and fix them with self-tapping screws.

03

Finally, another board is placed above the fixed metal carving board, and the groove of another board is inserted into the slot of the fixed metal carving board. Then repeat the above operation.

04

After the installation, the exterior wall decoration is beautiful, heat preservation and heat insulation, fireproof,moisture-proof and sound insulation. Make wall level before installation.When installing metal carving board also want to find level.

FAQ

We are manufacturer factory. You are welcomed to visit us at any time.

Our products have passed CE.

Yes,we have an engineer team and can design for you according to your requirements.Architectural drawing,structure diagram,processing detail drawing and installation drawing will be made and let you confirm in different time of the project.

The delivery time depends on the size and quantity of building.Generally within 30 days after receiving the payment.And partial shipment is allowed for big order.

We will furnish you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step.

30% deposit and 70% when meet BL copy.  Or L/C.
