Metal Square Tube
Metal Square Tube Products
A metal square tube is a tubular structural element made from metal, with a square-shaped cross-section. This type of tubing can be used in construction, manufacturing, furniture making, and various other fields.
In construction, metal square tubes are often used for structural support, framing, handrails, railing components, and more. They possess excellent strength and stability and can be used for multiple purposes.
Product Advantages
Structural Integrity: Metal square tubes offer exceptional structural integrity due to their geometric shape.
The square cross-section provides uniform load distribution and resistance against bending, making them ideal for applications that require robust support and stability.
Versatile Application
Aluminium Square Tubes are highly versatile and can be employed in various contexts. They are commonly used in construction, manufacturing,
And fabrication projects for tasks such as framework, support structures, and the creation of components like handrails and frames.

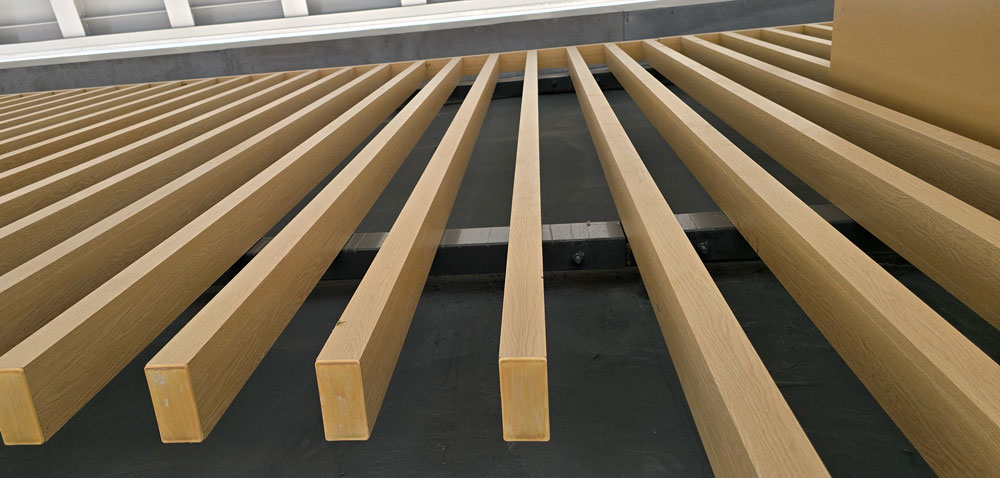

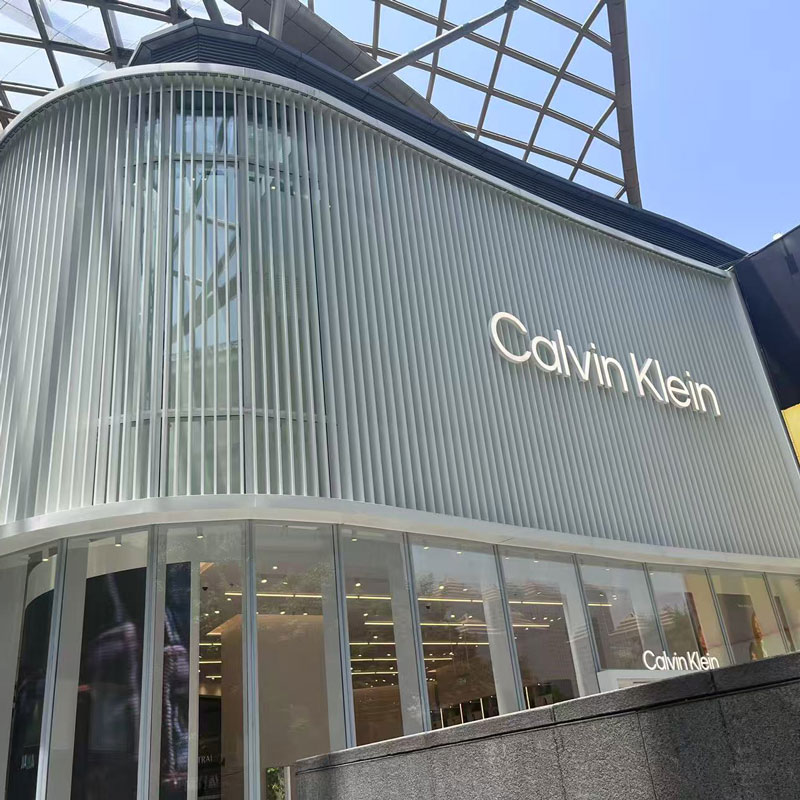

Application Cases
REASONS TO CHOOSE SIKO
Color consistency
High quality PVDF/FEVE coating on a continuous industrial grade coil-coating line conforming to AAMA 2605 and ECCA guidelines.
Perfect flatness
The alloy and temper used in the manufacturing of SIKO is specifically chosen to ensure that the finished product has perfect flatness.
Non-combustible
A non-combustible panel which has passed a larger system test BS 8414-1 and is classified as A1-s0,d0 as per EN 13501-1 test standard.
Formability
SIKO is a solid and rigid aluminum panel, yet highly formable.
Range of colours
SIKO comes in a vast range of colors and surface finishes, giving you a large variety to choose from.
Technical support
You get support from team in recommendation and designing of appropriate fixing systems or any other necessary assistance.
Recyclability
SIKO is 100% recyclable material.
Warranty
SIKO comes with a 15-year warranty.
Reasons to choose SIKO
-
Color consistency
High quality PVDF/FEVE coating on a continuous industrial grade coil-coating line conforming to AAMA 2605 and ECCA guidelines.
-
Non-combustible
A non-combustible panel which has passed a largersystem test BS 8414-1 and is classified as A1-s0,d0 as per EN 13501-1 test standard.
-
Various colors
Range of colours comes in a vast range of colors and surface finishes,giving you a large variety to choose from.
-
Perfect flatness
The alloy and temper used in the manufacturing is specifically chosen to ensure that the finished product has perfect flatness.
-
Formability
Solid and rigid aluminum panel,yethighly formable.
-
Technical support
You get support from our team inrecommendation and designing of appropriatefixing systems or any other necessary assistance.
-
Warranty
15-year warranty.
-
Recyclability
100% recyclable material.
Technical Data
| TECHNICAL PROPERTIES | STANDARDS | DATA |
|---|---|---|
|
Alloy |
EN573-3 3003 |
3003 |
|
Temper |
EN 515 |
H24 |
|
Standard Thickness* |
EN 485-4 |
3mm |
|
Standard Width* |
EN 485-4 |
1000mm 1250 mm 1500mm 1575mm 2000mm |
|
Standard Length ** |
EN 485-4 |
As Required |
|
Panel Weight |
|
8.1 Kg/m² |
|
Tensile Strength |
EN 485-2 |
145-185Mpa |
|
Modulus of Elasticity |
EN 485-5 |
70,000 N/mm2 |
|
Yield Strength Rp0.2 |
EN 485-2 |
>=115Mpa |
|
Elongation |
EN 485-2 A |
>=6% |
|
Linear Expansion |
EN 1999 1-1 |
2.4mm/m at 100°C temperature difference |
|
Gloss |
EN13523-2 |
25~40% |
|
Surface |
|
PVDF/FEVE |
|
Fire Classification |
EN 13501-1 |
A1-s0,d0 |
|
* Other thicknesses available on request.
** Custom widths available on request.
*** Coating thicknesses varies for different surface finishes. |
||
Standard Colrs
