U Baffle Ceiling

U Baffle Ceiling

Get Quote

U Baffle Ceiling is a ceiling system composed of a series of U-shaped metal plates. Its highly customizable sizes and finishes make it widely used in commercial and public spaces. This design provides flexibility to meet different space needs, adding unique beauty and style to the indoor environment. The exquisite appearance and diverse options of U Baffle Ceiling make it an ideal choice for commercial buildings and public places, while ensuring the perfect combination of design and functionality.

SpecificationsDetails
Width20-200mm, can be customized
Height20-200mm, can be customized
LengthMax 6000mm, can be customized
Material OptionsAluminum, Steel
Perforation OptionsYes
Acoustic OptionsYes, with sound-absorbing material
Installation SystemSuspension system

Product Advantages

The U Baffle Ceiling boasts a modern and sophisticated design characterized by its U-shaped hanging elements. This design not only adds a touch of elegance to interior spaces but also serves as an effective solution for optimizing acoustics.



By utilizing its unique U-shaped structure, the U Baffle Ceiling facilitates the even distribution of sound, reducing echoes and creating a more comfortable auditory environment. This combination of contemporary aesthetics and acoustic functionality makes the U Baffle Ceiling a prime option for spaces aiming to harmonize visual appeal with sound control.

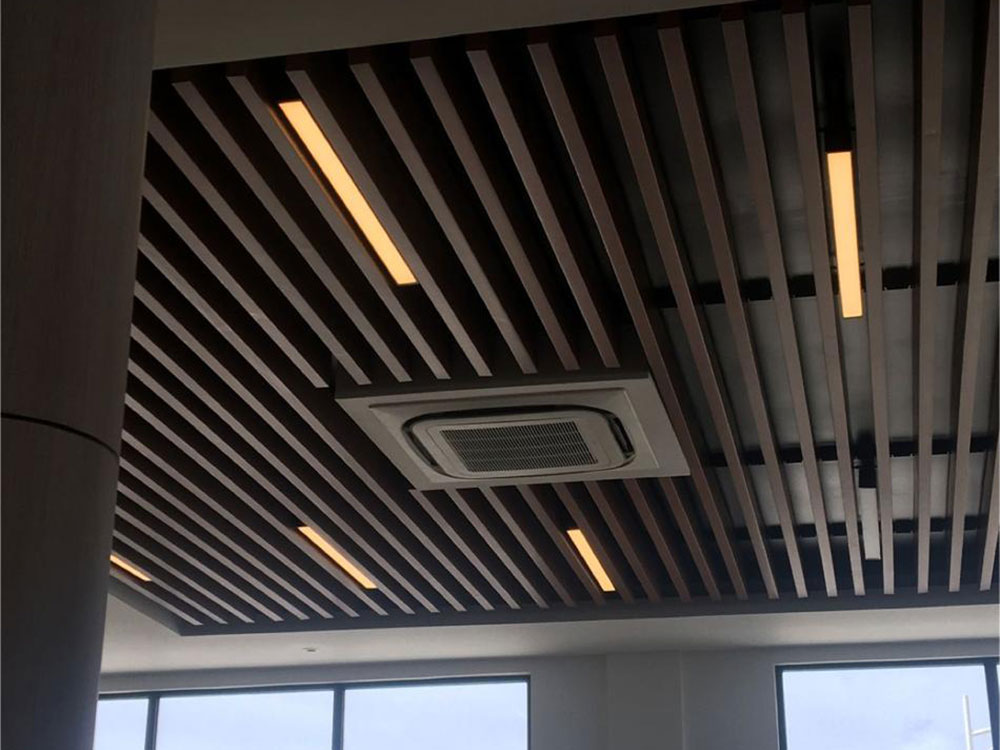

Application Cases

REASONS TO CHOOSE SIKO

Contact Us to get free samples

Color consistency

High quality PVDF/FEVE coating on a continuous industrial grade coil-coating line conforming to AAMA 2605 and ECCA guidelines.

Perfect flatness

The alloy and temper used in the manufacturing of SIKO is specifically chosen to ensure that the finished product has perfect flatness.

Non-combustible

A non-combustible panel which has passed a larger system test BS 8414-1 and is classified as A1-s0,d0 as per EN 13501-1 test standard.

Formability

SIKO is a solid and rigid aluminum panel, yet highly formable.

Range of colours

SIKO comes in a vast range of colors and surface finishes, giving you a large variety to choose from.

Technical support

You get support from team in recommendation and designing of appropriate fixing systems or any other necessary assistance.

Recyclability

SIKO is 100% recyclable material.

Warranty

SIKO comes with a 15-year warranty.

Reasons to choose SIKO

  • 1

    Color consistency

    High quality PVDF/FEVE coating on a continuous industrial grade coil-coating line conforming to AAMA 2605 and ECCA guidelines.

  • 2

    Non-combustible

    A non-combustible panel which has passed a largersystem test BS 8414-1 and is classified as A1-s0,d0 as per EN 13501-1 test standard.

  • 3

    Various colors

    Range of colours comes in a vast range of colors and surface finishes,giving you a large variety to choose from.

  • 4

    Perfect flatness

    The alloy and temper used in the manufacturing is specifically chosen to ensure that the finished product has perfect flatness.

  • 5

    Formability

    Solid and rigid aluminum panel,yethighly formable.

  • 6

    Technical support

    You get support from our team inrecommendation and designing of appropriatefixing systems or any other necessary assistance.

  • 7

    Warranty

    15-year warranty.

  • 8

    Recyclability

    100% recyclable material.

Technical Data

TECHNICAL PROPERTIES STANDARDS DATA
Alloy
EN573-3 3003
3003
Temper
EN 515
H24
Standard Thickness*
EN 485-4
3mm
Standard Width*
EN 485-4
1000mm 1250 mm 1500mm 1575mm 2000mm
Standard Length **
EN 485-4
As Required
Panel Weight
8.1 Kg/m²
Tensile Strength
EN 485-2
145-185Mpa
Modulus of Elasticity
EN 485-5
70,000 N/mm2
Yield Strength Rp0.2
EN 485-2
>=115Mpa
Elongation
EN 485-2 A
>=6%
Linear Expansion
EN 1999 1-1
2.4mm/m at 100°C temperature difference
Gloss
EN13523-2
25~40%
Surface
PVDF/FEVE
Fire Classification
EN 13501-1
A1-s0,d0
* Other thicknesses available on request. ** Custom widths available on request. *** Coating thicknesses varies for different surface finishes.

Standard Colrs
